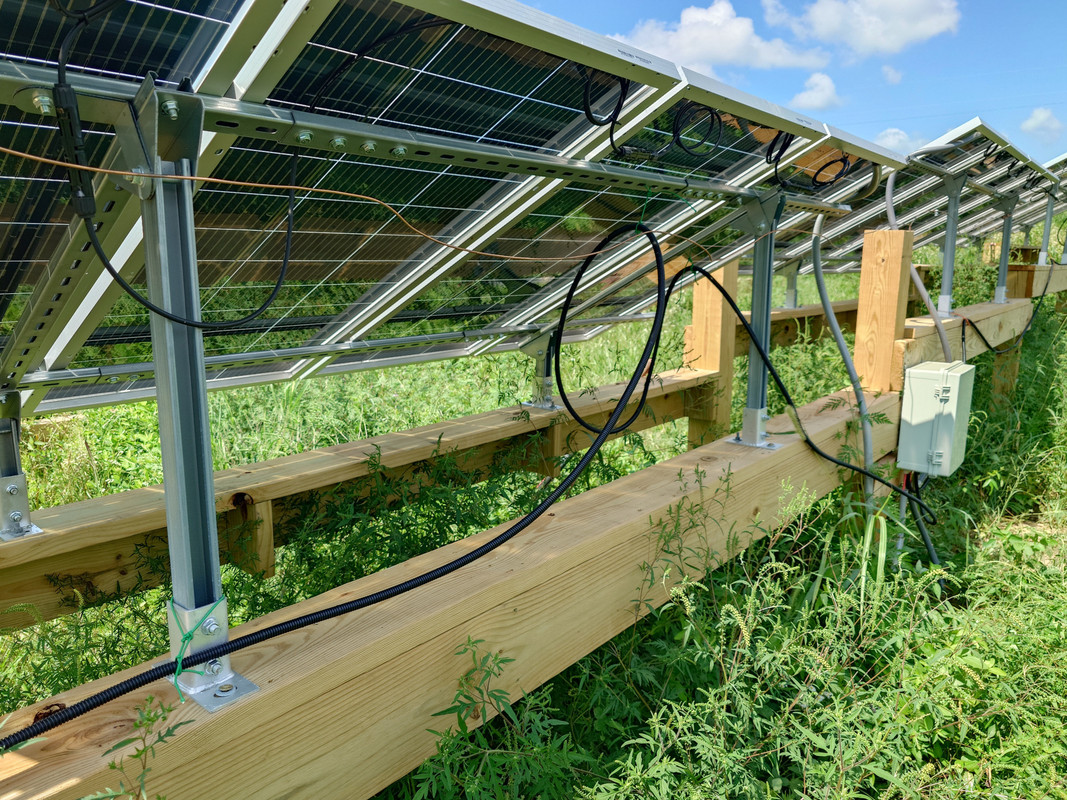

A busy day over by the upcoming garlic field. I am spending time over by array-c and adding protective wrapping to the wires that go to the solar panels. These wires are tough, meant to be direct buried into the ground. But the harsh UV light and elements will wear those wires down when not buried. So I added some plastic protective sleeving to the exposed wires. And then tied them up to the frame so they do not get ran over or hit by a mower or such.
https://i.postimg.cc/jSHwzzHx/20250815-114323.jpg
At the same time, I hired an insulation company to add blow in and side insulation to my storage building. This will help keep the batteries and inverter inside the storage building at a good temperature. The upper limit for my inverter is 113F (45C) after that it has reduced performance. And during the winter, we want to keep temperatures above 45F (7C) otherwise battery heaters will activate and use extra power. If temperatures drop below freezing the batteries will not charge. So keeping the right temps is key for solar power systems and batteries.
https://i.postimg.cc/rm8Sdf72/20250815-093603.jpg

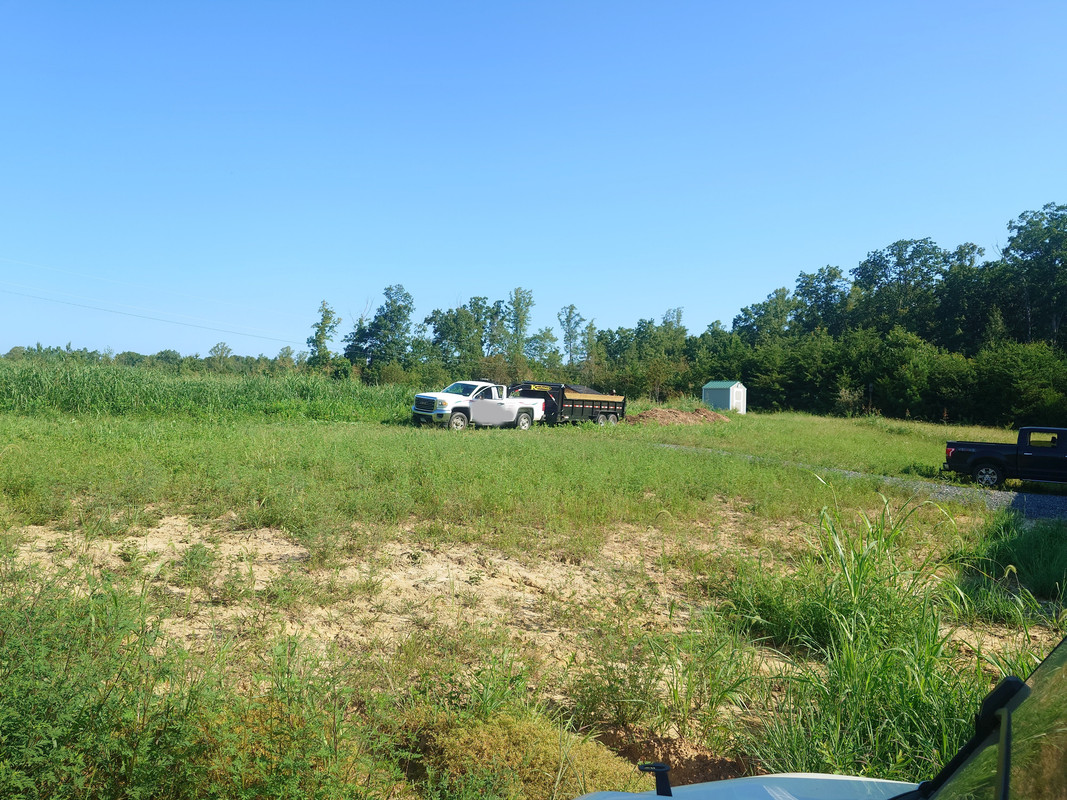

I also have been paying a local tree trimming company $50 a load for wood chips, with 15 loads I should be able to add quite a bit to the upcoming garlic field. It already has 10 loads in it, so adding some more should put us in a good place and hopefully hit an organic content level over 6%. Right now we are at 3.9% so hoping next year we can raise that number a little bit.
https://i.postimg.cc/05XpQdfh/20250815-093725.jpg

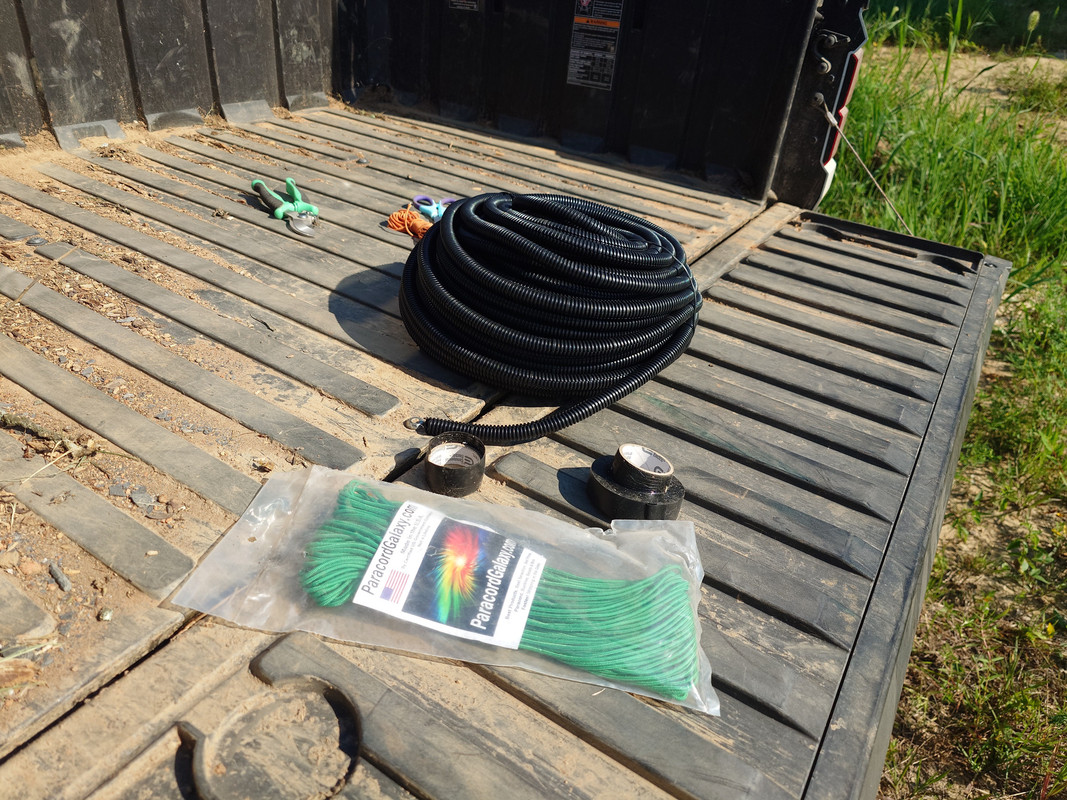

Everyone was doing their thing, and took me a few hours to get all the wrapping on the wires.
https://i.postimg.cc/ZnQ3M4nJ/20250815-093736.jpg

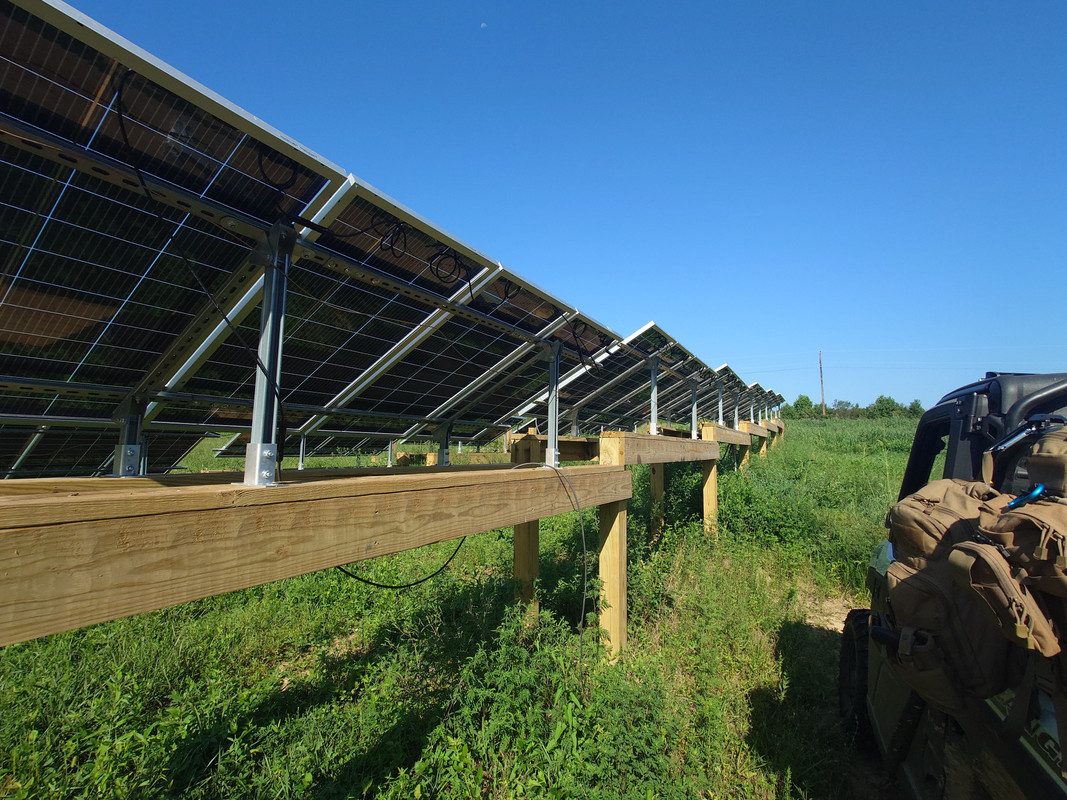

I do not understand why my electrical tapes keep doing this... lol
https://i.postimg.cc/HsJb7cvn/20250815-093743.jpg
As I wrap the wires, I tape up the ends and connecting points where I had to add segments of the protective sleeving.
https://i.postimg.cc/MKhV06gD/20250815-093753.jpg
What it all looks like before I started, just the PV wires laying around without covers.
https://i.postimg.cc/wjLJwKpd/20250815-100812.jpg
It is hot, and sunny.. a good day for the solar panels. I am wearing all white and a hat to try to keep the UV rays at bay.
https://i.postimg.cc/zfNhMdzH/20250815-100821.jpg

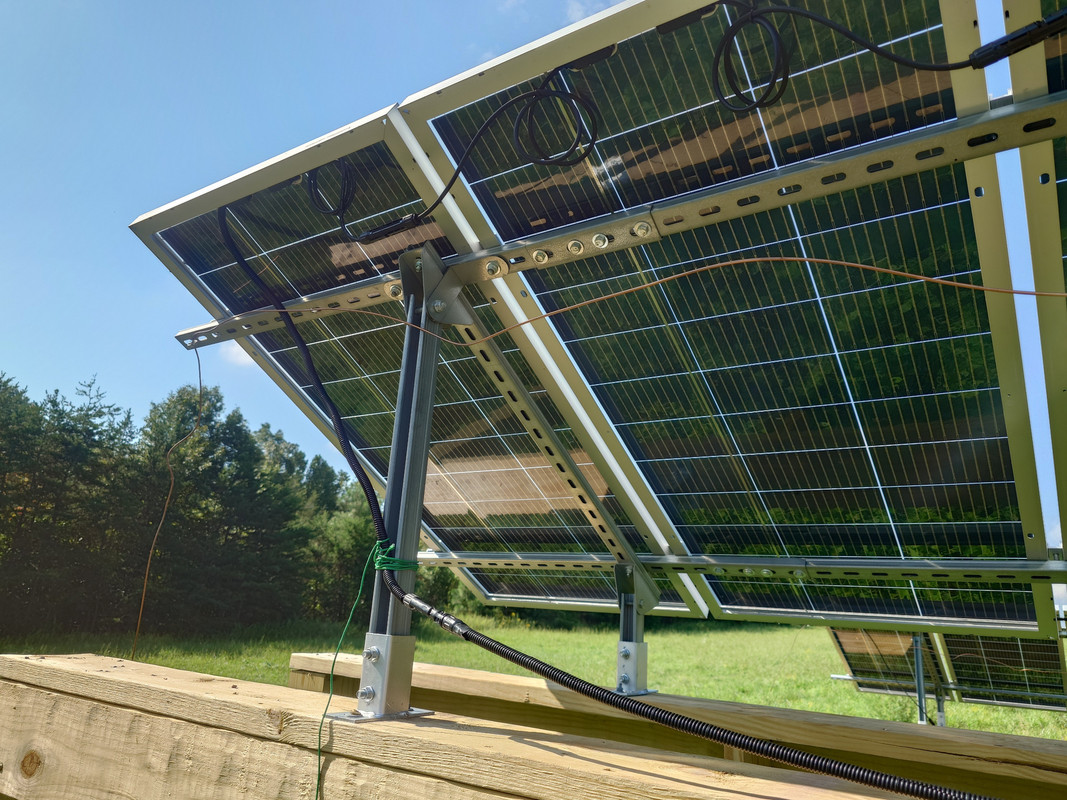

I tie the ends of the wires to make sure they do not get pulled on as I wrap them.
https://i.postimg.cc/C1LqMzfF/20250815-113006.jpg

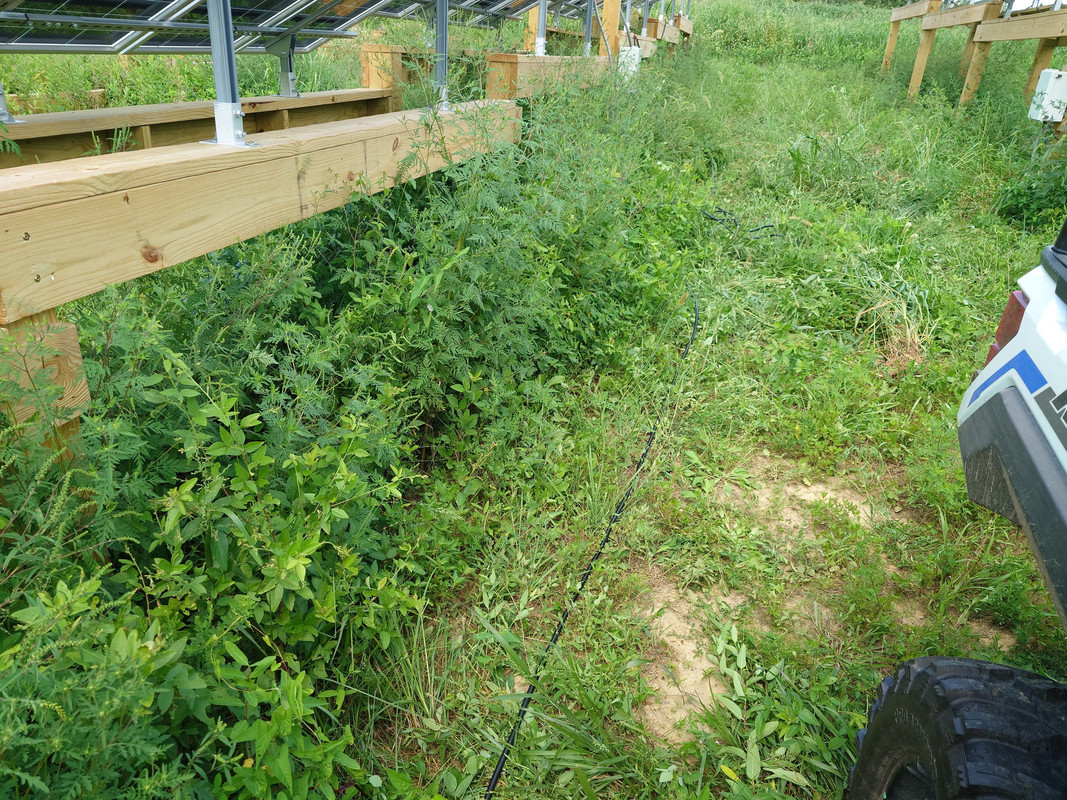

Lol looks like a long snake in the grass. I will get them all tied up so they are not laying on the ground.
https://i.postimg.cc/zBtRy8nT/20250815-113036.jpg

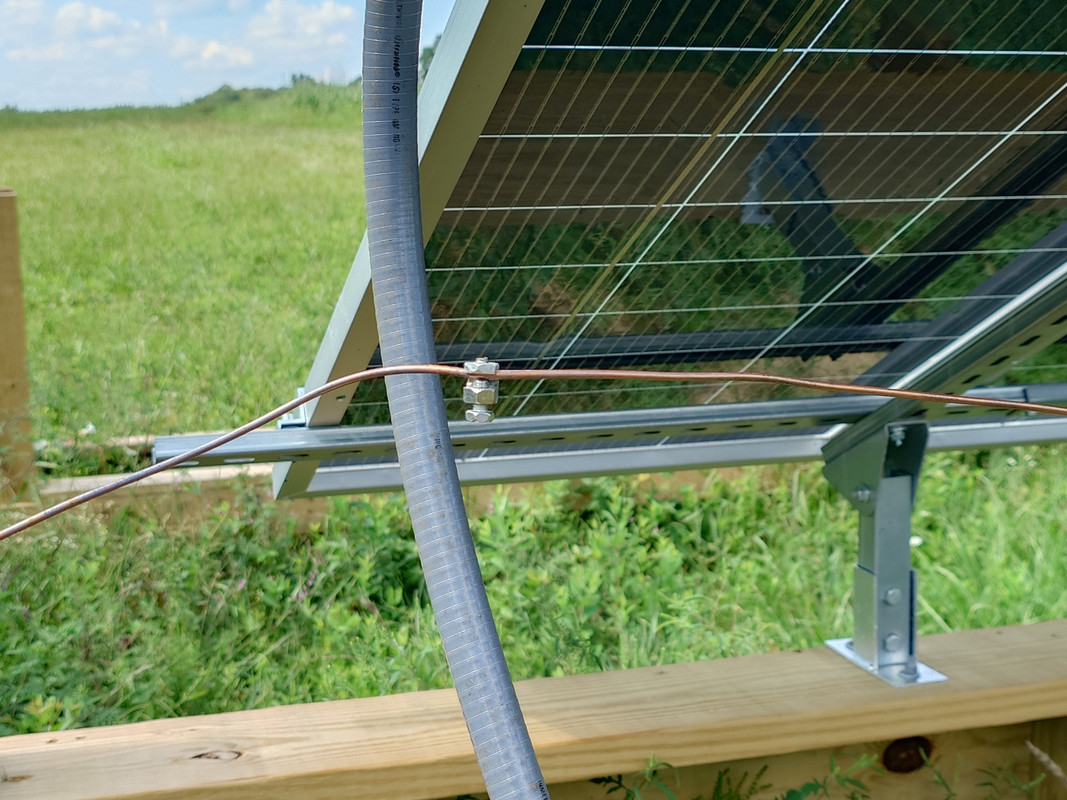

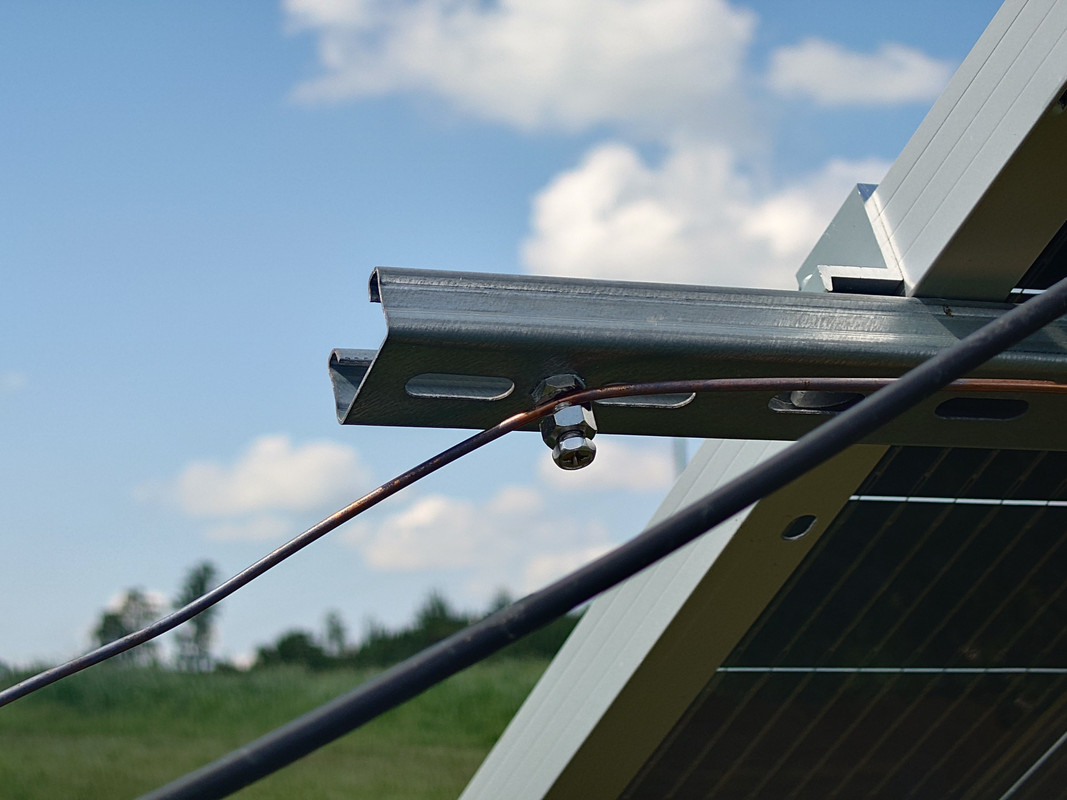

While I am working on wrapping the wires, I inspect the components of the solar arrays. Most of it looks good. As we can see a proper grounding clamp installed to the frame.
https://i.postimg.cc/C5RnDXNX/20250815-113046.jpg
Here further down the line looks like the bolt broke. I will need to replace it.
https://i.postimg.cc/D0RJc6pZ/20250815-113117.jpg

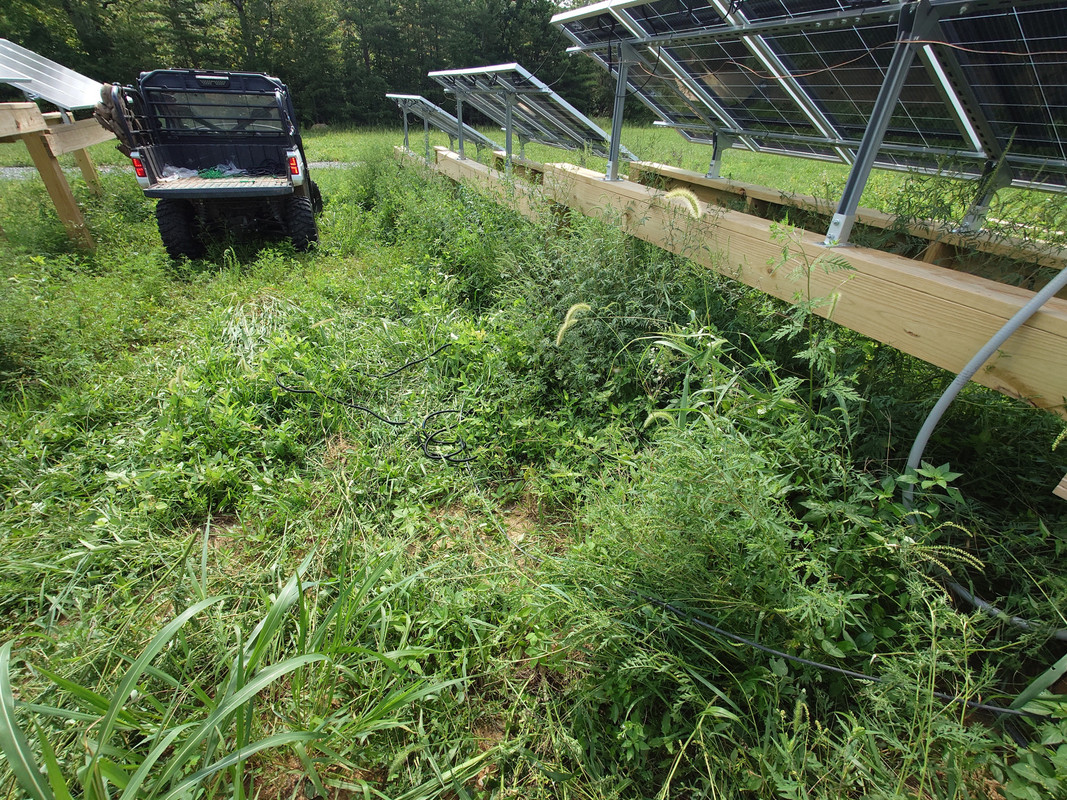

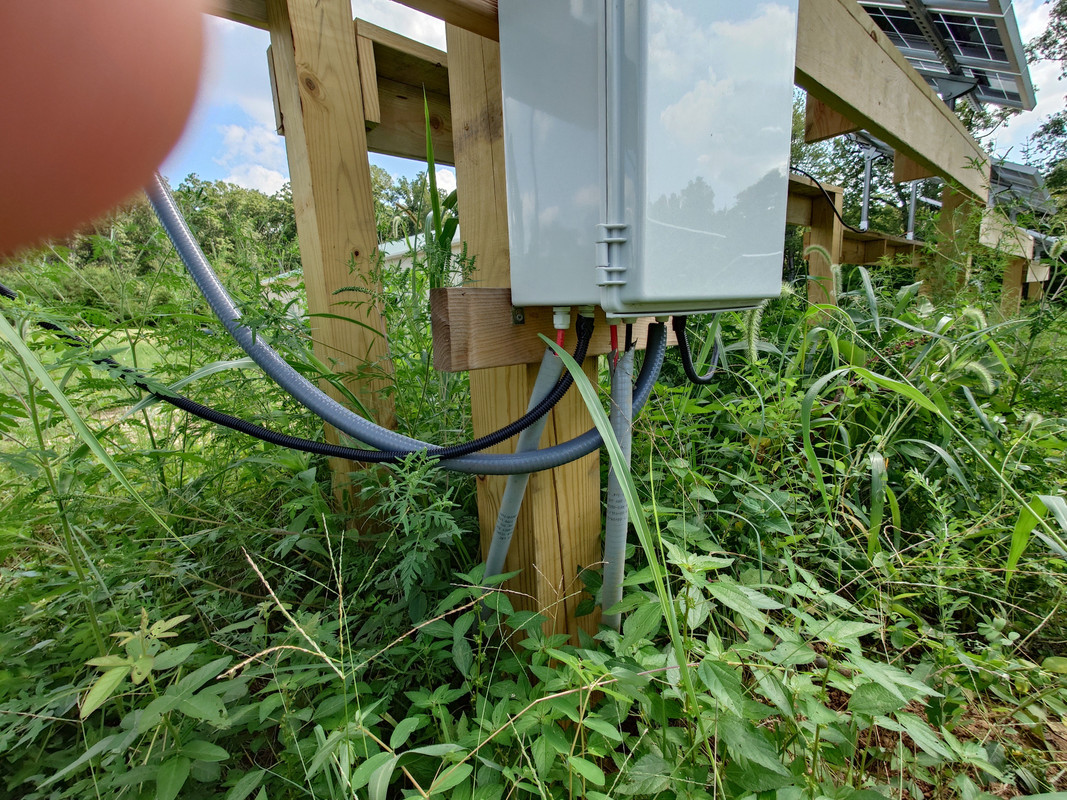

Lol sorry about the finger, we can see all the wires are protected going into the breaker box.
https://i.postimg.cc/pVSFxVVH/20250815-113128.jpg
Soon we can mow back here with all the wires tied up.
https://i.postimg.cc/Nfrr0hLr/20250815-113209.jpg

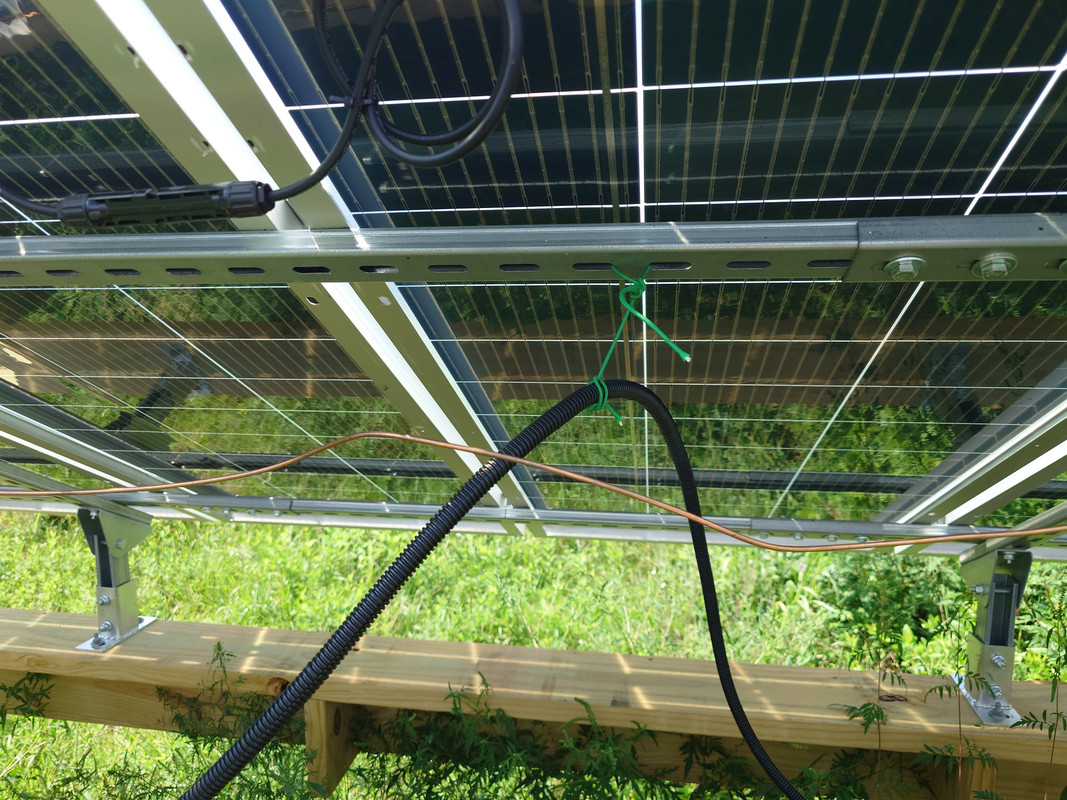

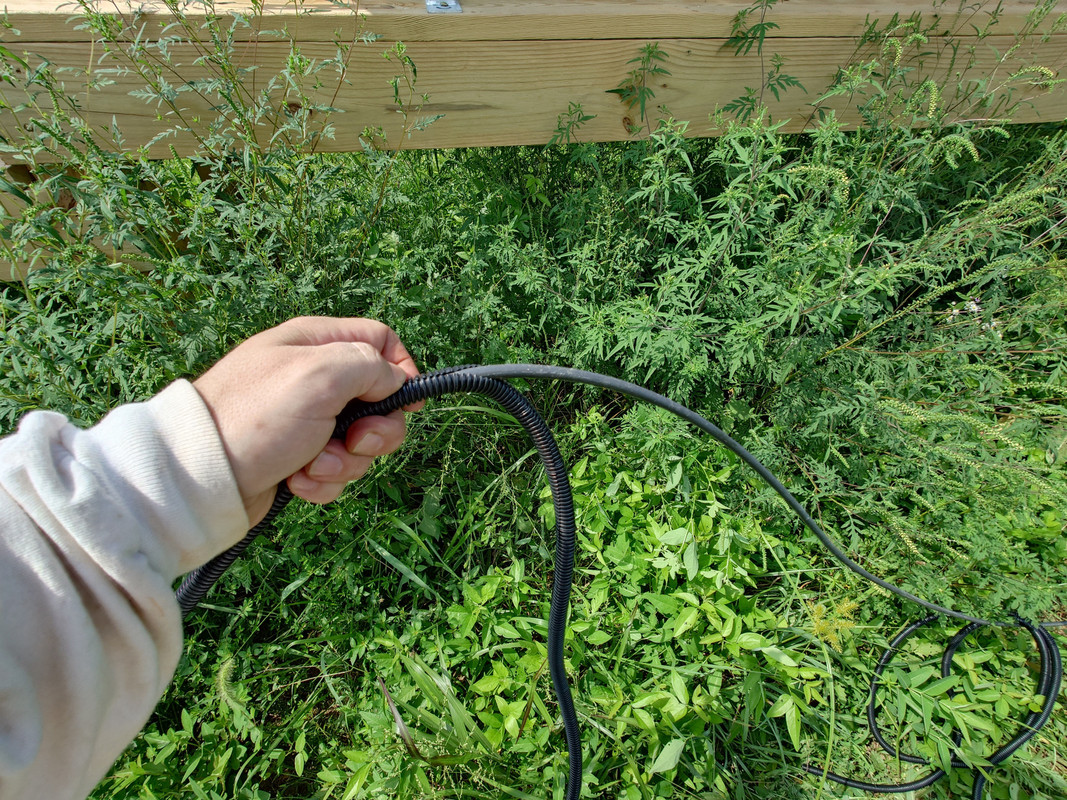

But its a slow process, took me about half a day to get both rows all wrapped.
https://i.postimg.cc/PqdLKPym/20250815-114328.jpg

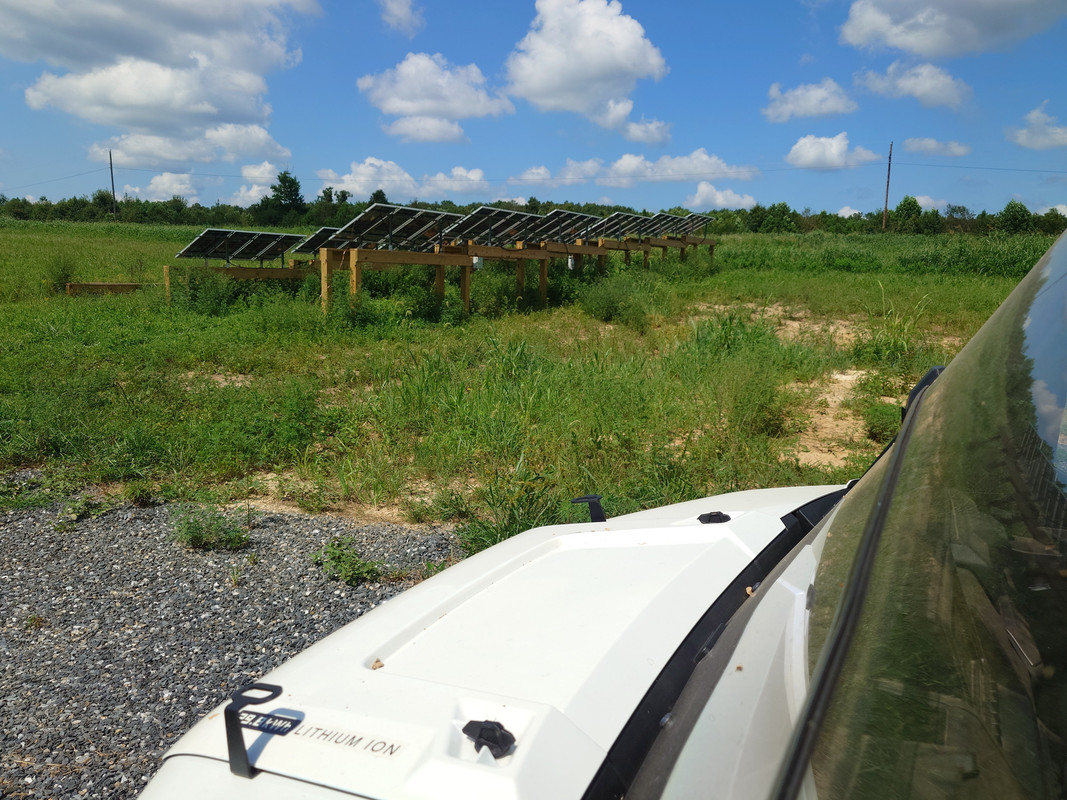

A couple of my wires were a bit long, I did not want to cut them. So I just tied them up higher up under the frames.
https://i.postimg.cc/W4SdyTYx/20250815-114654.jpg
Its great to have this array up and running, it is powering the blow in insulation machine that they are using inside the storage building.
https://i.postimg.cc/xCCXDhW8/20250815-133136.jpg

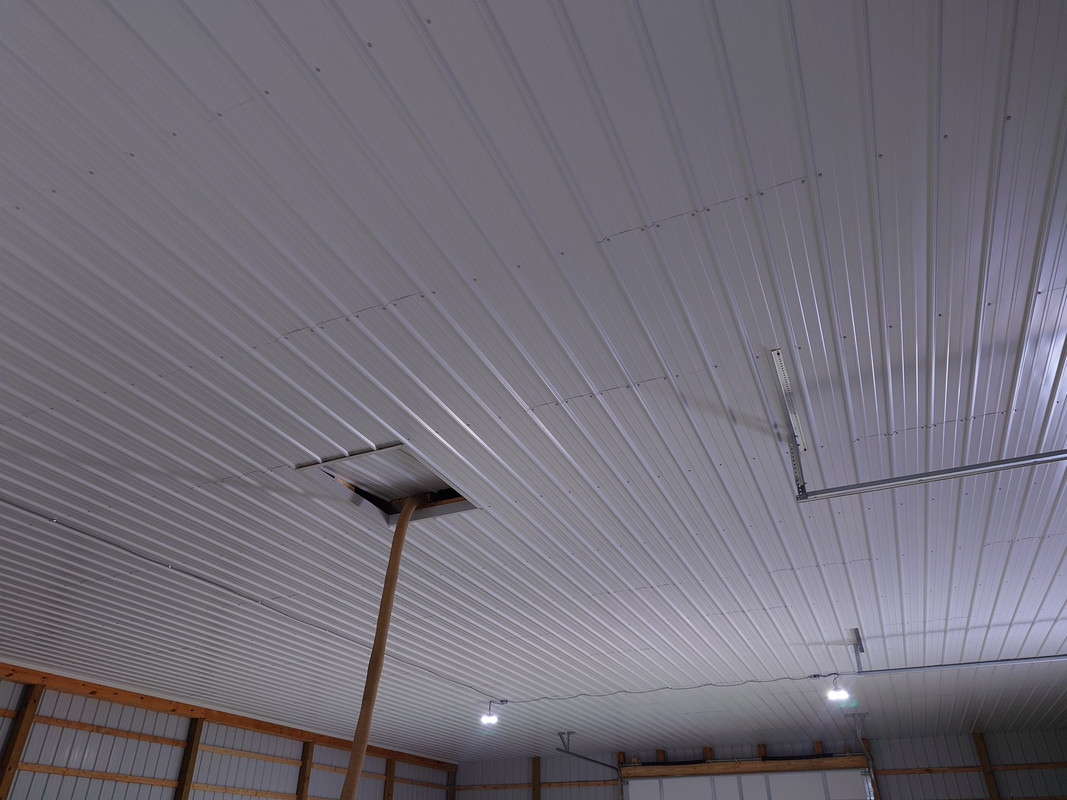

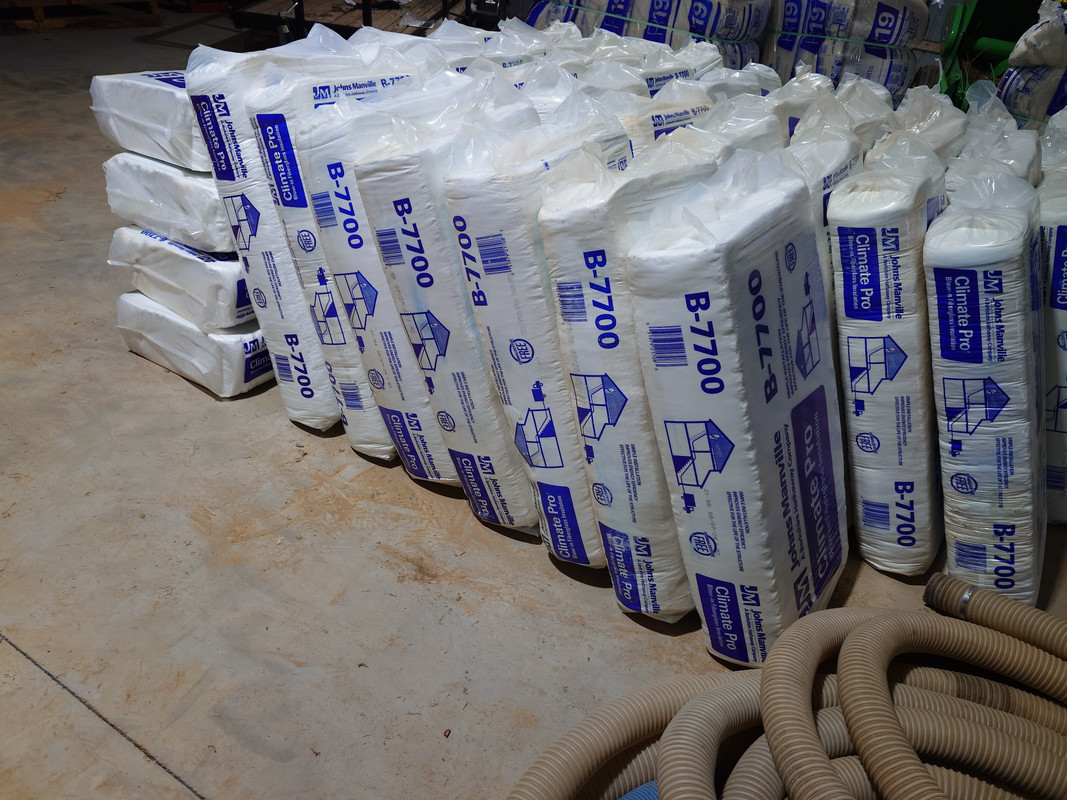

Lots of insulation to blow in, will take them a few days to complete.
https://i.postimg.cc/Tw4pRQ69/20250815-133141.jpg

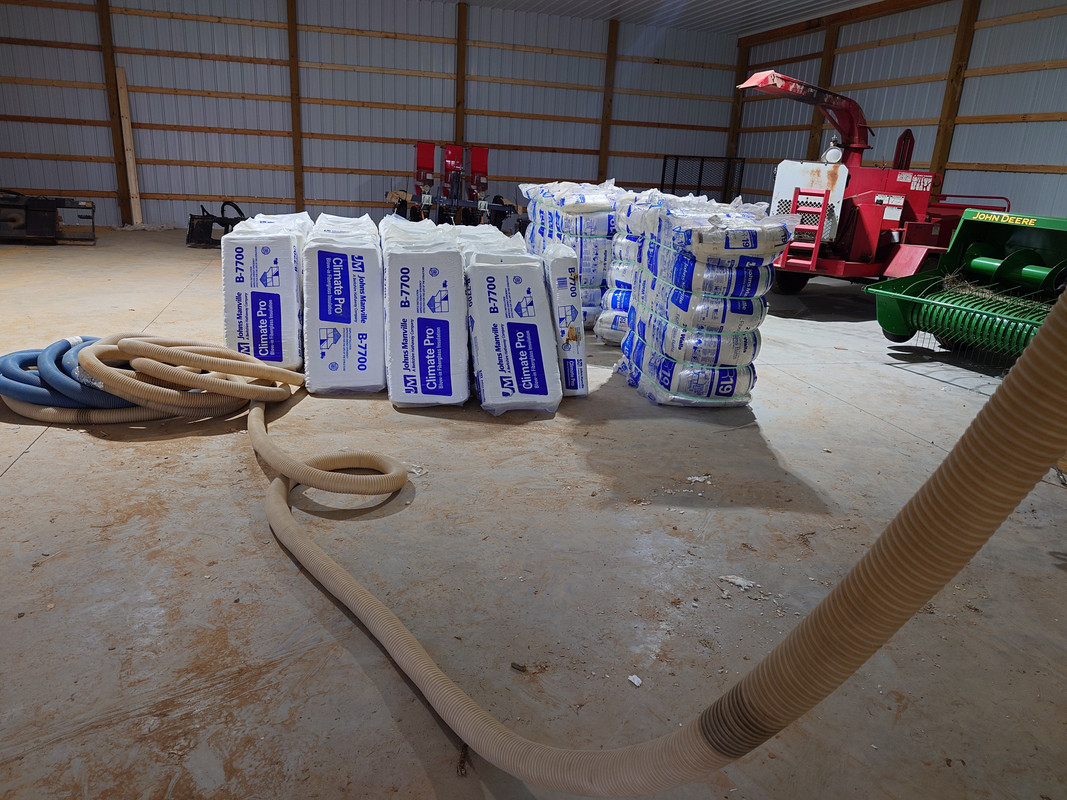

Having a ceiling on the storage building helps keep the wasps away, and gives us a place to blow in lots of insulation.
https://i.postimg.cc/C5nddDMV/20250815-133151.jpg
The side walls are up next, but for now they are focusing on the ceiling.
https://i.postimg.cc/Z0knNR0v/20250815-133158.jpg
A generator was brought along by the workers for the insulation installation. Though it was not needed, my solar array provided more than enough power and still charged up the batteries before lunch time. Next to the generator is a dehumidifier, I run it around the clock and it dumps into that barrel. Eventually we will just run a line outside to drain. Its okay though, takes it weeks to fill up that 55 gallon barrel.
The pump house will also be insulated, and with a simple light bulb we hope to keep the equipment warm enough in there not to freeze. Still a few months away from any cold weather, but I am working toward being ready for it.
