Dismantling a Laptop with my Daughter!

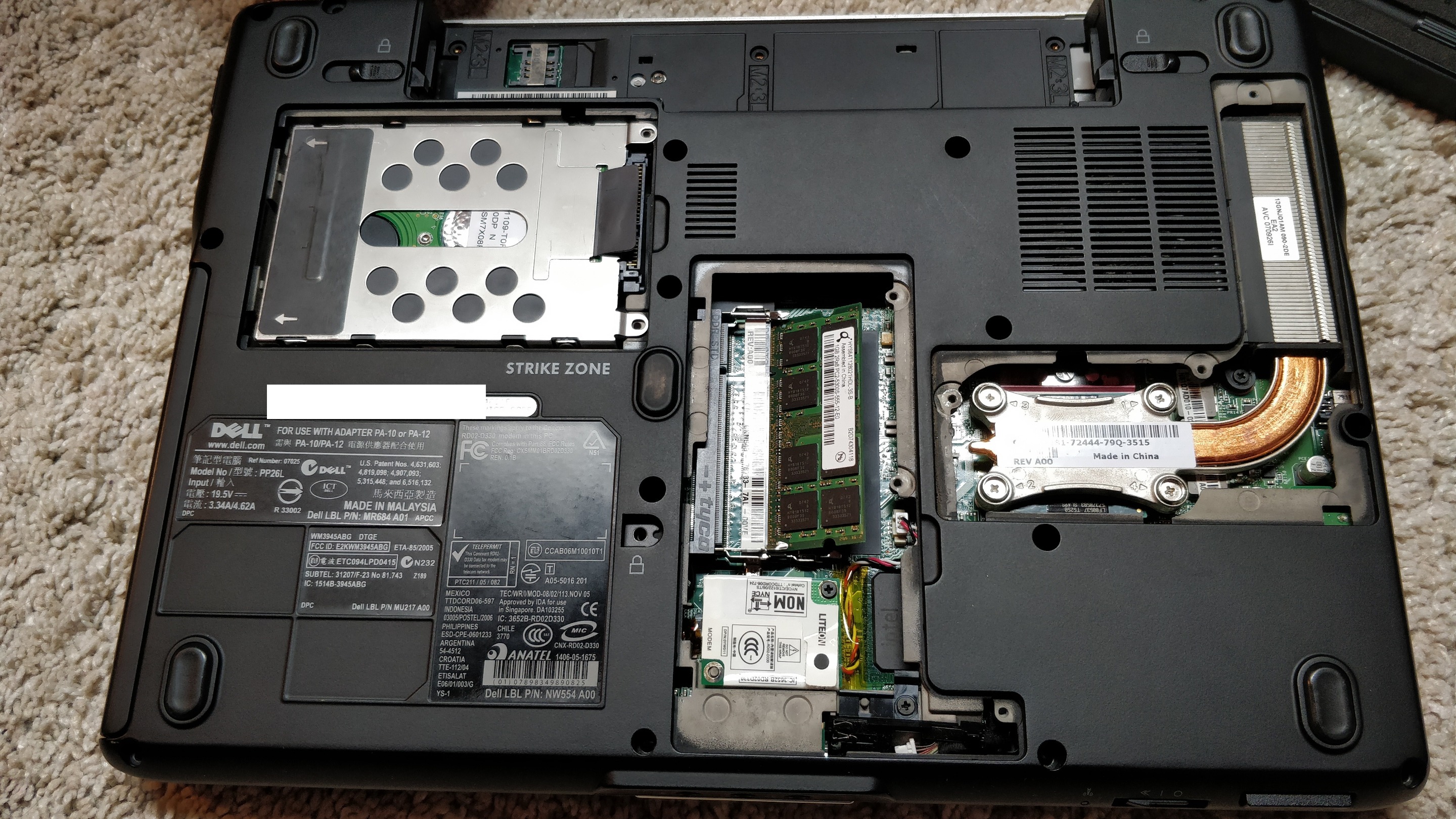

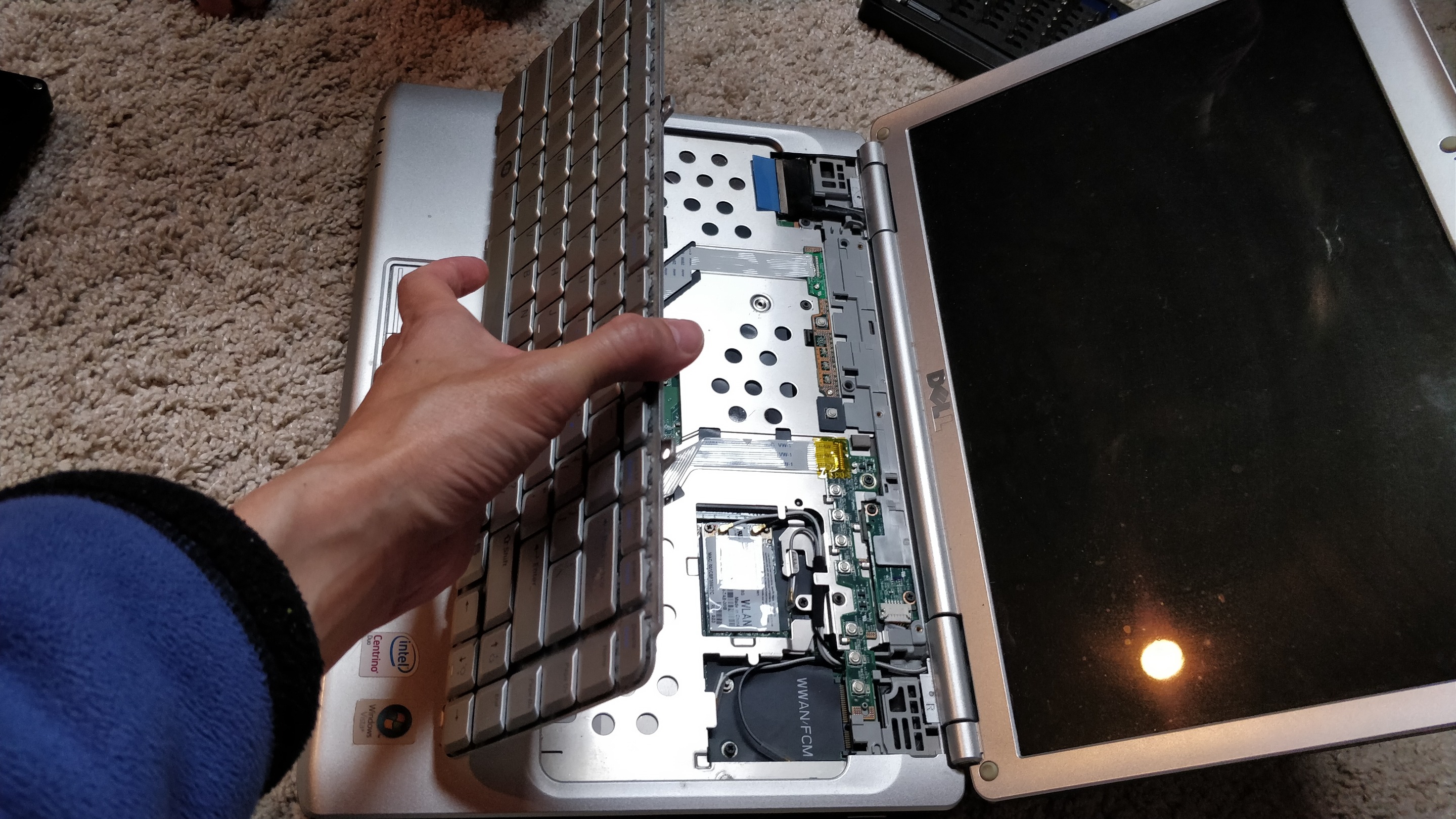

 As a bit of a tech nerd... I tend to hoard most of our old electronics, which means that I have a bit of a stash of old laptops, phones, tablets and old RAM slabs... and don't even get me started on that nightmarish box of old cables! Well, you will never know when one of these things will come in handy! (My wife has kept an eye on it... and her estimation is that they come in handy about once ever then years... if I'm lucky!). So, this particular Dell Inspiron laptop from about a decade ago was one of the laptops that was sitting on a laptop pile in the attic. I was planning to re-purpose it as a kids laptop for Netflix and Zoom (for the online school classes...). However, on booting it up, I discovered that the screen was completely bust. So, this meant I had two options... order a screen replacement part (for a decade old laptop...) or just accept that it was dead enough and dismantle it with extreme prejudice as a learning experience for my older daughter! The destructive side won out... after all, I had other laptops that I could re-purpose instead, and this one was really too old to be worth repairing and saving. That said, after the careful dismemberment of the laptop, I would take it to the e-waste and recycling so that someone else might be able to use the components if they really wanted (except for the Hard Drive, which I would be extracted and destroying).  So, armed with my trusty little iFixit precision tools with every possible screw-head that you would possible need for electronic based repairs, my daughter and I were prepared to take the little guy apart for her enlightenment about how computers look on the inside. Also, in the iFixit kit is a metal pry tool, great for levering out panels and components instead of using a sharp knife (or breaking fingernails...). Now, first things first... battery out. You don't want to take your chances on puncturing a battery cell (although, you would have to be stupidly unlucky to do that... or trying really hard...)... but more importantly, you don't want to accidentally discharge a charged capacitor on the circuit board. Those things can pack a punch on a desktop computer... I'm not sure that they have the same kick on a laptop... but I'm not going to test out that theory on my first born child. Perhaps with the second one...  Now, Dell is pretty damn friendly with the way that they have sealed up their laptops. Pretty standard screw shapes and no funny business. So, it is just a matter of matching up and finding the right size and shape. For most of this dismantlement I was just taking a talking and guiding role... my daughter was the one doing all the hard work!  I love these iFixit tools, strong and well made... and the screwdriver is the right design for confined spaces of computer cases. The entire process can be done easily with one hand, as the screwdriver core rotates independently of the housing, which means you only need a bit of pressure on the top to keep it stable, and then turn the housing. Seeing as we were not really repairing but dismantling, we just undid all the screws without bothering to keep track of locations, so this was all the access panel screws and the ones holding the back-plate of the laptop as well.  Normally, we would be tracking where each screw came from... you will notice that they are subtly different in length if you look closely, and when you put them all back together, there is nothing more annoying that realising that the screws are not properly holding as you have mixed them all up! Often, I do use the back of the iFixit box to hold the screws. There are segmented compartmenments to keep the screws apart, but it is my one main complaint of the screwdriver kit. I separator walls are not high enough to stop the screws mixing when it is bumped, so I would have hoped for a magnetic tray to hold the screws in place!  So, you can see the metal pry/shiv come into use getting these access hatches off. The screwdriver is magnetic, so you can get some traction on the screws to try and help pull up the panel, but generally the screw falls out rather than pulling out the panel. So, you need to have something to shiv in between the panel and backplate... and this tool is perfect, thin and sturdy... although, it is made of metal, so you do need to take some care if you don't want to scratch a surface. In this case you have no need to be careful as it is housing and not a screen!  So, here we have the back of the laptop with all the access panels removed, but with the backplate still attached. In the top left, we have the 2.5 inch Hard Drive bay... with an old mechanical spinning Hard Drive of low capacity (compared to modern standards). This is the part that I do want to remove before sending the entire scrap to the e-waste/recycling.... I have no memory (haha...) of what is actually on the hard drive, but it is better to be safe than sorry! In the middle, you have the RAM sticks (two in a dual channel configuration) on the top and beneath that, the Lite-On module (I think this is for the CD/DVD controller). Finally, on the right... you have the copper heat-sink that covers the CPU (an old Centrino setup, I think it was one of the old Core Duo Intel chips) and wicks away the heat to the grill assembly in the far right (with the fan blower to the left, blowing outwards). Now, it is interesting to note that all of these things are within easy user access... you only need to unscrew the access panels... this was something that was much more common with older laptops, however, in the pursuit of thinness, OEMs have had to remove a lot of that accessibility to achieve a more integrated design. Still, for nerds like me, the accessibility and repeatability of internal components is always a consideration in the computers that I purchase for myself.  Popping out the RAM modules is easy... remember the days when they weren't soldered in place! From memory (ha ha...), I had bought the lowest RAM configuration from Dell for this laptop and had just installed my own RAM sticks. An easy way to get better performance and save cash! I ended keeping these... despite the fact that the likelihood of requiring SODIMM sized RAM sticks of decade old vintage being relatively small... almost zero!  Busting off the speaker grill on the top side of the laptop reveals the speaker components as well as some of the display cables and also the Wifi antennae.  Using the pry-tool, we levered out the keyboard. Normally, this is something that you really want to avoid doing at all costs as the keyboard ribbon (under the keyboard) is quite easy to break (or disconnect accidentally...). Even if it isn't broken, it can be hard to place it back without accidentally squashing it (and breaking it... ) or having a weird lump under the keyboard. That said, some manufacturers have their RAM modules (or other components) accessible only via the keyboard side of the motherboard... which means this is a necessary, tedious and annoying step to accessing those internal bits. However, we are destroying this laptop... no need to be careful for once!  Disconnecting the display and Wifi radio antennae means is a simple matter of unplugging them from their respective motherboard headers...  ... which allows us to properly decapitate the laptop and detach the screen half of the clamshell. Now, if you were replacing the screen (as I was briefly tempted to do...), you would be opening up the screen housing and sliding in a new panel. But not today! Now, you can also see that we had not yet disconnected the keyboard and mousepad ribbons, the white wide strips running down the middle of the non-display half of the laptop.  ... you can see how finicky they are! Hence, my overwhelming reluctance to touch them if I was just repairing and not destroying a laptop. They have a nice little twist that packs them under the keyboard, but the ribbons themselves are really very delicate. At the bottom, you can see them feeding in, under the the metal hatching then folding back to connect to the header in the middle of the photograph. You can see that that isn't the sort of thing that you want to replicate by disconnecting and pulling out the keyboard and mousepad ribbons. So, the cardinal rule of laptop disassembling... if you want it to work again.. NEVER NEVER... disconnect these ribbons! Leave them in place, and work around them... but just leave them connected!  ... but I'm not aiming to have a working laptop afterwards... so, we disconnected the ribbons from the motherboard header!  So, this is the back of the keyboard tray... yep... you don't want to try and do this again!  ... with the keyboard tray disconnected fully and out of the way, we can see the other side of the motherboard. Most of this is what we had already seen on the other side... but there are some bits that weren't easily accessible on the opposite side. The CD/DVD tray and module is on the bottom left, and the WWAN/WiFi modules are just above that... those were the bits that we had disconnected the antennae from earlier in the dismantling.  ... so a CD/DVD tray... one of these things that have existed long past their prime... you generally won't see one of these in a laptop build anymore, as they just take up too much space that you can better use for other things. Does anyone use CD/DVDs anymore? I have one on one of my desktops... but that is more for emergencies and it is a bit of an old build as well. For real emergencies, I have a USB connected external tray... as well as a floppy disk drive!  So, the elusive HDD tray which was the target of the dismantling and evisceration of the laptop. Of course, there was a much easier and less destructive way to get to this little guy, but that wasn't the point of the excercise! My daughter and I had a great deal of fun breaking this machine up, and seeing what all the little bits and pieces did! I'm just thankful that we don't have to put it back together again!  ... clean your fan grills people. Overheating is a real cause of laptop death!... speaking of which, I need to open up my wife's laptop to do this! I have no idea what she does with her laptop, but they always seem to attract dust internally at about 10 times the rate of every other machine in our house!
